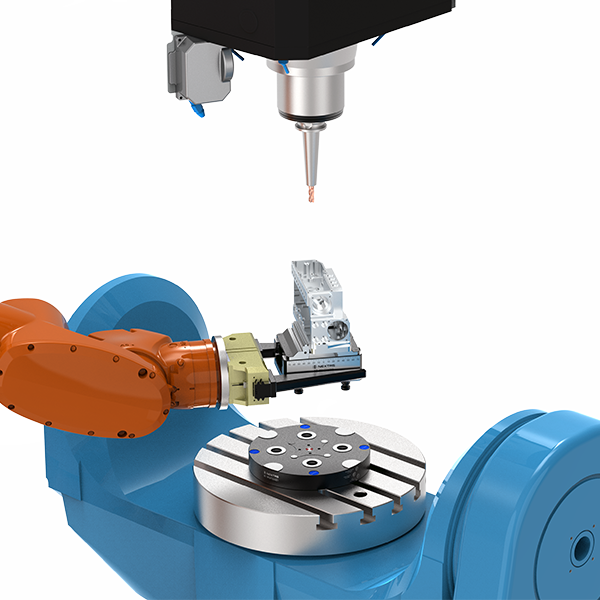

- Quick Change Datum Pallet System
52mm/96mm industry-standard modular design, lightweight and versatile, expandable flexibility to cope with parts use.
Mechanical clamping force structure with 20,000N clamping force ensures machining stability.
Fixture repetitive positioning accuracy <5um, can be set to set the zero center of the mechanical coordinates, realizing the adjustment of the machine "does not take the zero position of a key to start" efficient operation.
The chuck indexing 4x90° allows for the flexible use of product corner modules.
Unlocking method:Unlock air pressure(0.5~0.8Mpa)& Manual
- Application
-
Aerospace
-
Defense Industry
-
Semiconductor Industry
-
Automobile Manufacturing
-
Shipbuilding Industry
-
Medical Equipment
-
Automatic Production
-
Laser Intelligent Manufacturing
